Venue signage: arrows that work at ten metres and on a phone screen

Wayfinding at an event is printed large, cut from vinyl and shown on screens. One vector set does all three — here is how to prepare it.

Nobody reads a wayfinding sign. They glance at it while walking and act on the shape. That is the whole design brief. It is why signage artwork is nearly always simple, bold and monochrome, and why the file has to be geometry rather than pixels: the same arrow is printed at A1, cut from vinyl at 200 mm, and shown on a screen in the lobby.

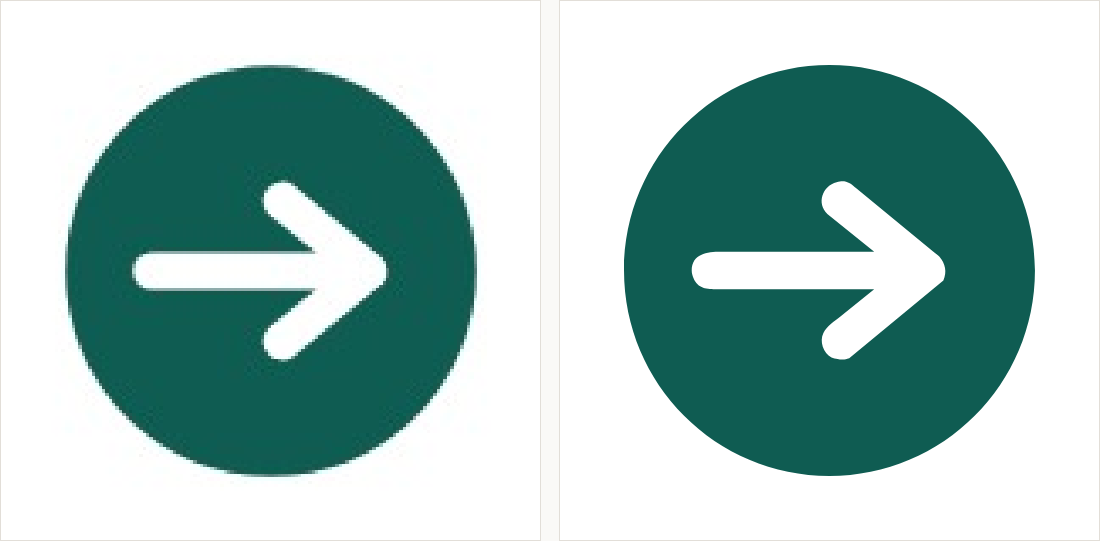

A green disc with a white arrow: on the left a small compressed copy with a ragged circle edge; on the right a clean circle and a sharp arrow.
Left: 160 pixels, JPEG quality 60. Right: Logo mode, two colours. 2 paths, 27 nodes.

Two paths is the point

The whole sign is a disc and an arrow. That is what a cutter wants, what a printer wants and what a screen wants — nothing to simplify, nothing ambiguous, nothing that behaves differently at one size than another. Twenty nodes describe it completely, which means it opens instantly in any software the venue happens to use.

Cut vinyl has rules a printed sign does not

If the sign will be cut rather than printed, the file has to be closed outlines with no strokes. A cutter follows paths and ignores stroke width, so a 14-pixel white stroke becomes a hairline cut down the middle of where you thought the shape was. Convert every stroke to an outline before sending, and check that each shape is closed.

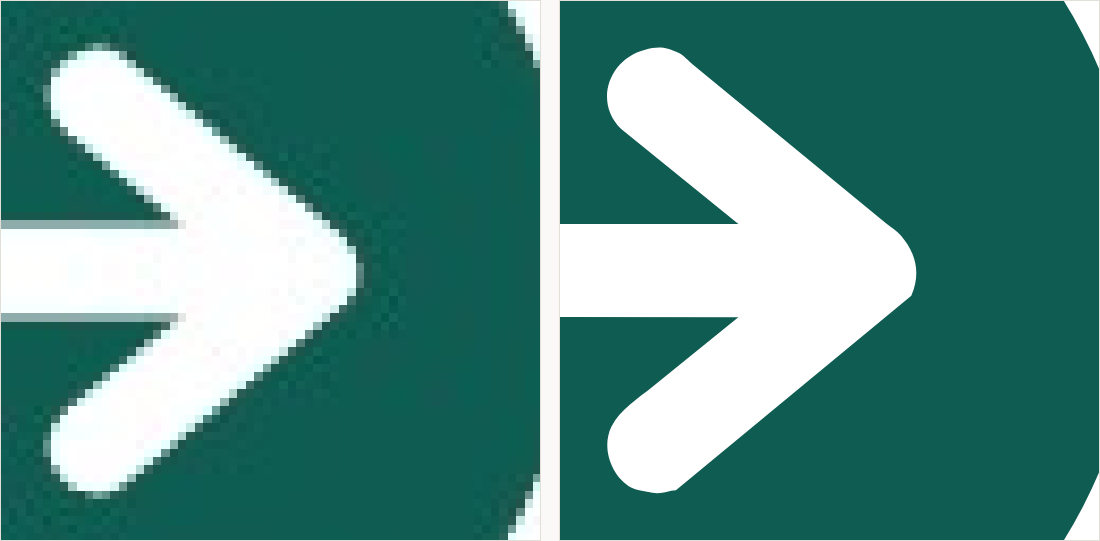

The arrow head magnified: on the left the diagonal is a staircase with grey fringing; on the right two straight edges meeting at a clean point.
The arrow head at roughly 2.5×. A diagonal is where a raster sign fails first and most visibly.

Contrast beats design

A wayfinding sign is often read in bad light, at an angle, past somebody’s shoulder. Dark on light or light on dark, with nothing subtle in between, is what survives that. The temptation to tint the arrow to match the event’s palette is the single most common reason a sign does not work.

A set, not a sign

  • Draw one arrow and rotate it — four directions from one shape keeps the whole set consistent
  • Keep the same disc size and stroke weight across every sign in the venue
  • Make an accessible-route version if your venue has one; it is a different path, not a smaller arrow
  • Export SVG for screens and PDF for print from the same file, so they can never drift apart

Tracing an old sign gives you that clean set back when the original files have been lost, which at a venue is most of the time. It reproduces the shapes faithfully — it does not tell you whether the sign was in the right place. That part is still a walk around the building the day before.
