Corner motifs: one drawing, mirrored four ways

Corner designs are drawn once and reflected. Vector geometry keeps every corner identical; a photograph of a corner does not.

A corner motif appears four times on one piece of cloth, each a reflection of the same drawing. Reflection is unforgiving: the eye compares opposite corners without being asked to, and any difference between them is read immediately as a fault in the cloth.

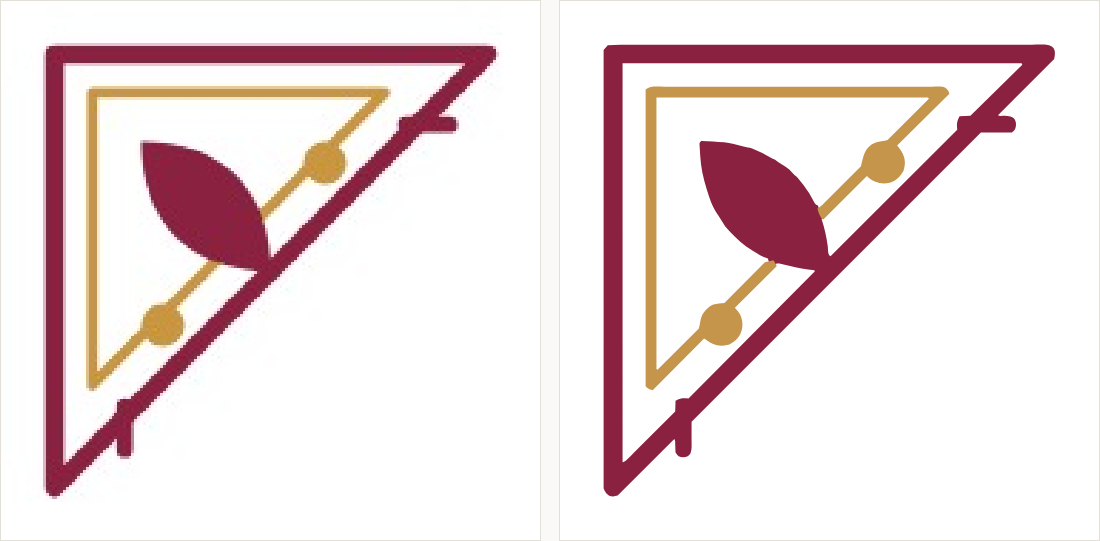

A triangular corner design with a double border and a curved leaf shape: on the left a small compressed copy; on the right clean edges and flat colour.
Left: 190 pixels, JPEG quality 62. Right: Logo mode, three colours. 3 paths, 185 nodes.

Draw one, mirror it

Trace a single corner and produce the other three by reflection. They are then mathematically identical by construction, and a change to one changes all four. Tracing four photographed corners separately gives four slightly different shapes — and because they sit diagonally opposite one another, the differences are exactly where they will be noticed.

Where the borders meet

The corner has to join the border running along each edge: same width, same colour, same distance from the selvedge. Build the corner and the border in one file so the junction is set once. A corner that is 2 mm narrower than its border reads as a mistake even to somebody who could not say what is wrong.

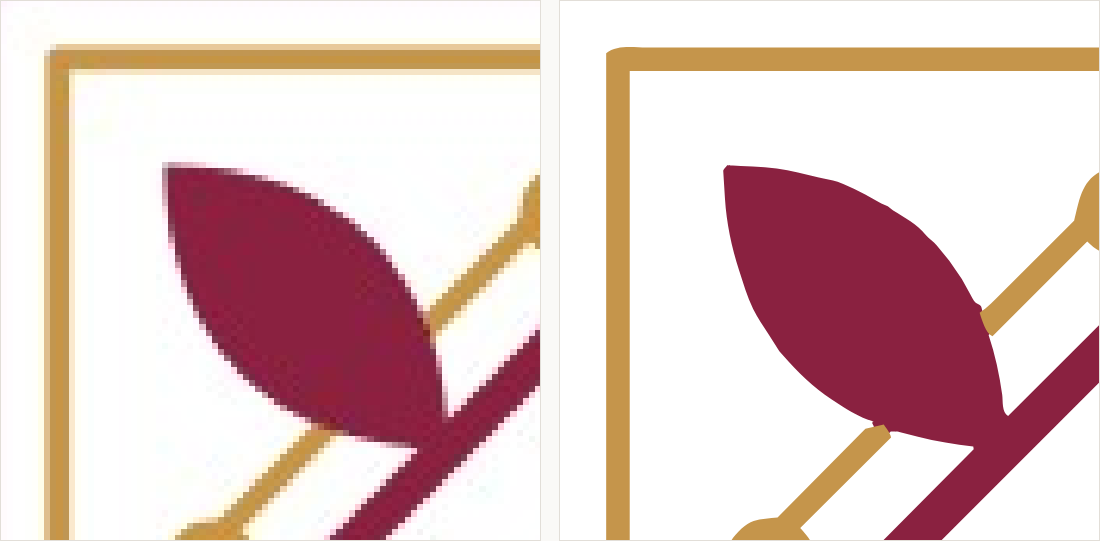

The outer and inner border lines at the corner magnified: on the left the two rules blur into one another; on the right two distinct even lines meeting at the corner.
The double border at the corner, at roughly 2.2×. Two rules this close together are the first thing to merge in a compressed photograph.

Printing and weaving, again differently

A printed corner can be as fine as the printer resolves. A woven one is limited by the loom, and a corner is where a weave is under most strain, because the pattern changes direction there. Ask the mill what they can hold at a corner specifically — the answer is often coarser than their general minimum.

Small things that matter

  • Keep the motif clear of the hem allowance, or it will be folded away
  • Check the design mirrored as well as upright — some motifs look wrong reflected, and it is better to find that on screen
  • Keep the colour count to the number of threads or screens you are paying for
  • Save the single corner as the master file; everything else is placement

A trace reproduces the drawing you give it. It does not decide whether a motif reads well from across a room, or whether it survives being draped rather than laid flat — cloth moves, and a design approved flat sometimes disappears into folds.
